紧凑型直线式夹钳具有坚固耐用的结构，能够实现更长的使用年限和更佳的耐受性。反向动作（随着柱塞的前移，手柄反向旋转）能够维持紧凑的外形，并且保持手柄处于不工作状态。硬化钢材 - 硬化柱塞
|
|
||
 |
 |
| PART NUMBER | CAD | 最大夹持力 | 柱塞行程 | 冲头高度 |
|---|---|---|---|---|
| 5130 | - 快速下载 CAD (DXF/STP) - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
25800 N 5800 lbf. |
44.5 mm 1.75 in |
35.1 mm 1.38 in |
| 5130-B | - 快速下载 (DXF/STP) - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
25800 N 5800 lbf. |
44.5 mm 1.75 in |
24.9 mm 1.14 in |
| 5130-M | - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
25800 N 5800 lbf. |
44.5 mm 1.75 in |
35.1 mm 1.38 in |
| 5130-MB | - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
25800 N 5800 lbf. |
44.5 mm 1.75 in |
24.9 mm 1.14 in |
| 5131 | CONFIGURE CAD HERE | 11120 N 2500 lbf. |
25.4 mm 1 in |
28 mm 1.10 in |
| 5131-B | CONFIGURE CAD HERE | 11120 N 2500 lbf. |
25.4 mm 1 in |
22.1 mm 0.87 in |
| 5131-M | CONFIGURE CAD HERE | 11120 N 2500 lbf. |
25.4 mm 1 in |
28 mm 1.10 in |
| 5131-MB | CONFIGURE CAD HERE | 11120 N 2500 lbf. |
25.4 mm 1 in |
22.1 mm 0.87 in |
| 5133 | - 快速下载 CAD (DXF/STP) - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
20460 N 4600 lbf. |
79.5 mm 3.13 in |
35.1 mm 1.38 in |
| 5133-B | - 快速下载 CAD (DXF/STP) - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
20460 N 4600 lbf. |
79.5 mm 3.13 in |
24.9 mm 1.14 in |
| 5133-M | - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
20460 N 4600 lbf. |
79.5 mm 3.13 in |
35.1 mm 1.38 in |
| 5133-MB | - CONFIGURE CAD (EXTERNAL) - CONFIGURE CAD HERE |
20460 N 4600 lbf. |
79.5 mm 3.13 in |
24.9 mm 1.14 in |
 |

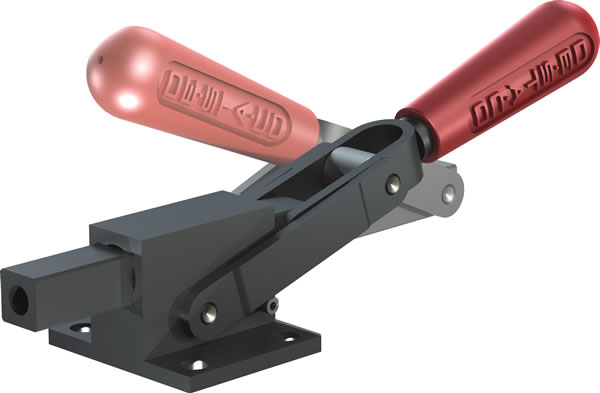

紧凑型直线式夹钳具有坚固耐用的结构，能够实现更长的使用年限和更佳的耐受性。反向动作（随着柱塞的前移，手柄反向旋转）能够维持紧凑的外形，并且保持手柄处于不工作状态。硬化钢材 - 硬化柱塞
|
|
||
|
|
| PART NUMBER | CAD | 最大夹持力 | 柱塞行程 | 冲头高度 |
|---|---|---|---|---|
| 5150 | CONFIGURE CAD HERE | 25800 N 5800 lbf. |
25.4 mm 1 in |
35 mm 1.40 in |
| 5150-B | CONFIGURE CAD HERE | 25800 N 5800 lbf. |
25.4 mm 1 in |
29 mm 1.14 in |
| 5150-M | CONFIGURE CAD HERE | 25800 N 5800 lbf. |
25.4 mm 1 in |
35 mm 1.40 in |
| 5150-MB | CONFIGURE CAD HERE | 25800 N 5800 lbf. |
25.4 mm 1 in |
29 mm 1.14 in |
